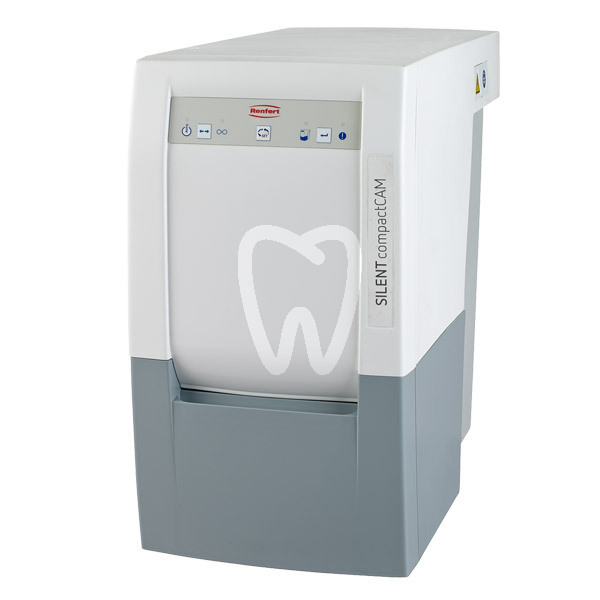

SILENT COMPACTCAM
Extraction unit designed for use with compact CAM equipment.
Details:
- Two-directional communication between extraction unit and CAM unit by means of the SPS interface.
- Process-optimised suction performance for compact CAD/CAM units.
Advantages:
- No dust bag change due to bagless, fine filter technology, including mechanical filter cleaning function.
- Reduced noise thanks to a fully enclosed collection motor.
- Easily incorporated due to compact design.
- Low downtime, as the motor can be replaced by the user in just a few minutes.
Technical data:
Mains input: 220-240V
Rated voltage: 230V
Turbine power consumption: 490W
Flow rate: 2,500l/min. (Max.)
Negative pressure: 21.9kPa (Max.)
Sound level: 55dB(A)
Dust retainer volume: 2.6l/min
Dimensions: 24.5cm (width) x 44cm (height) x 50cm (depth)
Weight: 13.2kg
