-24%

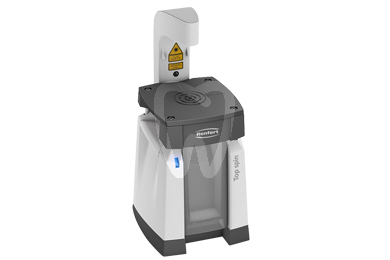

TOP SPIN A PLUS PINBOHRGERÄT
New version of the Top Spin pin drilling unit - more precise, safer and more durable. New and innovative drill bit geometry. Activated using motion sensor. Cleaned using the front drawer with fill level detection.
Advantages:
- Absolute precision for drilled pinholes with maximum rotation accuracy of ≤ 0.01mm.- Controlled drilling of narrow plaster arches: markings on the surface of the table enable accurate position control.
Accurate laser alignment
- New and innovative drill bit geometry:
50% reduction in drilling force
50% longer service life
- Two unit positions for an ergonomic working posture.
- Sophisticated cleaning concept thanks to front drawer with fill level detection.
- Automatic start-stop function and automatic spindle activation via motion sensor.
- Optimal precision control due to individual drill bit selection.
- Compact design with a high degree of stability.
- Resistance-free drilling thanks to the 8000rpm high torque motor.
- The individual, continually variable drill depth setting of 0–20mm makes it compatible with all pin systems.
Technical data:
Mains input: 240VAbsorbed power: 12W
Rotational speed, rpm: 8000
Cable length: 1.8m
Drill shaft: Ø 3mm
Permitted drill bit lengths: 34–46mm
Table elevation: 0–20mm
Laser class: 2
Weight: 4kg
Dimensions: 153 x 330 x 175mm
Accessories:product ref. H00759 Drill bit: drill head Ø 2.02mm; shaft Ø 3mm; drill depth 5.8mm.
